Weight Stack

Part Numbers

ZGS-11468-1

NSN: Not Assigned

Fixed Weight Stack Assembly

Fixed at 600lb.


ZGS-11468-2

NSN: Not Assigned

Adjustable Weight Stack Assembly

Included are three weight spacers to obtain weight adjustments between approximate 70lb (32.21kg) to upwards of approximately 600lb (272.16kg).


ZGS-11468-3

NSN: Not Assigned

Adjustable Spacers

To obtain weight adjustments between approximate 70lb (32.21kg.) to upwards of approximately 600lb (272.16kg).

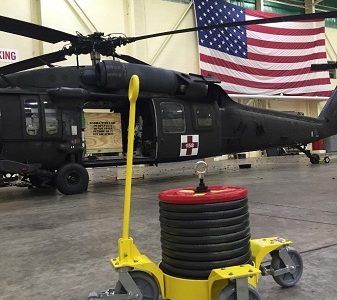

The Adjustable & Fixed Weight Stacks

are used to apply loads to the Hoist via the cable with the purpose of meeting the Hoist OEM’s requirements. Both have a shock absorbing cable attachment point, to protect the cable from the shock loads inherent in the process required by the Hoist OEM’s.

These products were designed to check the Hoist as well as allowing all the twists to work their way out of the cable.

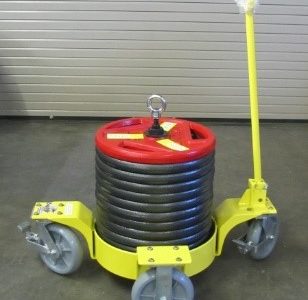

The Fixed Weight Stack Features

Used only to apply a 600lb load (272.16kg).

Has a shock absorbing cable attachment point to protect the cable from shock loads.

Comes with a trolley that can be used on the tarmac or other rough surfaces for easier maneuvering.

Can be disassembled and moved by hand one weight at a time for transportation, deployments, or shipboard use.

The Adjustable Weight Stack Features

Applies loads ranging between an approximate 70lb (32.21kg) to upwards of approximately 600lb (272.16kg).

Has a shock absorbing cable attachment point to protect the cable from shock loads.

Comes with a trolley that can be used on the tarmac or other rough surfaces for easier maneuvering.

Can be disassembled and moved by hand one weight at a time for transportation, deployments, or shipboard use.

Utilizing the included Adjustable Weight Spacers allows the weights to be held securely during testing with various loads.

Adjustable Weight Stack Configurations

Three Adjustable Weight Spacers are used to obtain four different Weight Stack configurations as shown. These are the approximate weight configurations when utilizing the Spacers.



The Spacers are Included with the Adjustable Weight Stack and can be added to an existing Fixed Weight Stack.
