Fixed Rescue Hoist Test Stand

Customized to meet the customer’s requirements

ZGS-12000-X

Rescue Hoist Test Stand for Intermediate Level Maintenance to work in Conjunction with your existing Hydraulic RHGSE.
Your current Hydraulic RHGSE may need to be upgraded.

ZGS-16000-X

Complete Rescue Hoist Ground Support Test Stand.
Intermediate Level Maintenance comes with a Hydraulic RHGSE or Depot Level Maintenance Stand comes with an attached Take Up Assembly.

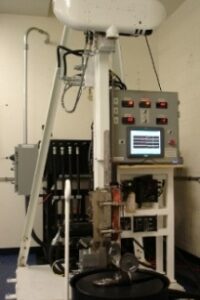

Shown is a depot level stand.

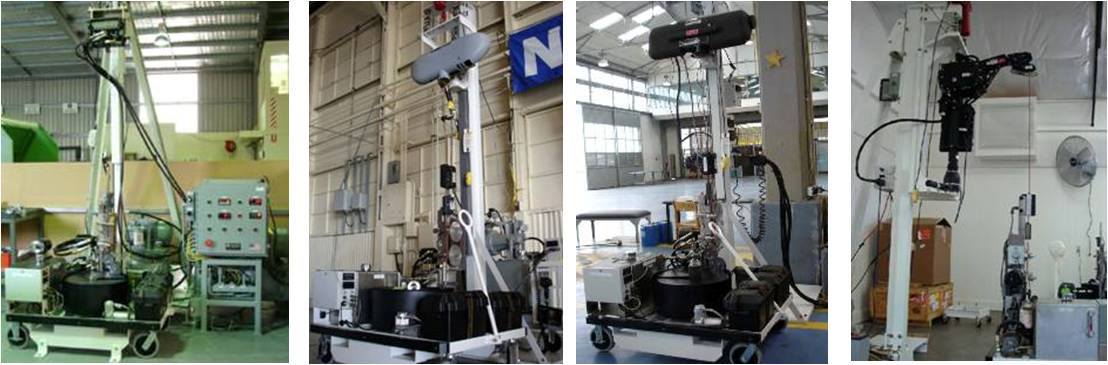

Fixed Rescue Hoist Test Stands (FHTS)

FHTS are designed, engineered, manufactured, and uniquely customized to meet the maintenance level requirements of each customer according to their specific maintenance requirements and style of rescue hoist(s) the user is maintaining.

The purpose of the FHTS is to allow testing of the rescue hoist in the hanger and off the aircraft.

Available maintenance levels are for Intermediate and Depot levels.

The depot level FHTS allows off the aircraft  testing and maintenance on the rescue hoist.  It performs testing in accordance with the OEM’s requirement including a complete dynamic and static load clutch slip test.  In addition, intermediate maintenance can be performed such as changing the cable, replacing limit switches, replacing the control module and making adjustments, limbering of the cable,and performing trouble shooting on the hoists while tensioning, cleaning, lubricating, drying and examining the cable.

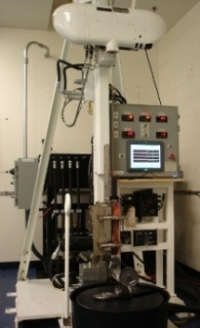

Shown is a depot level stand.

The intermediate level FHTS allows off the aircraft maintenance such as changing the cable, replacing limit switches, replacing the control module and making adjustments, limbering of the cable, and performing trouble shooting on the hoists.

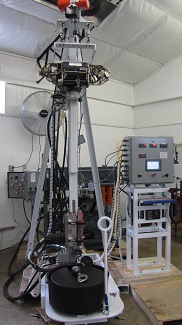

Shown is an intermediate level stand.

When FHTS is used in conjunction with the Mobile Ground Support Equipment it provides the capability to operate the rescue hoist off the aircraft in order to perform intermediate level maintenance and troubleshooting while tensioning, cleaning, lubricating, drying and examining the cable. All this can be accomplished by one trained person.

Technical Specifications

  • Varies depending on the user's specific maintenance requirement needs. Contact us for more information.
